Source esp32 webserver untuk tampil angka dan versi esp8266
Kontrol lewat halaman web
Esp 32 Sebagai webserver , default ssid : tampilangka , password 12345678
Saat setup
Tampil serial
Ssid
Password
Alamat webserver 192.168.4.1
mode di tampilan web :
Editable Player A1 (dari spiffs) | Button Simpan à action Player A1 ke spifss Player A1.txt |
Editable Player A2(dari spiffs) | Button Simpan à action Player A2 ke spifss Player A2.txt |
Editable Player B1(dari spiffs) | Button Simpan à action Player A3 ke spifss Player A3.txt |
Editable Player B2(dari spiffs) | Button Simpan à action Player A3 ke spifss Player A3.txt |
Tampil real time tanpa perlu reload page
Show AD | Point | SKOR BABAK 1 | SKOR BABAK 2 | SKOR BABAK 3 |
AD A YES atau NO
Button AD A à AD A = YES
Button No AD A à AD A = NO | (SPA)
Button + Button -
Nilai awal 0, +15 +30, +40
Kirim serial SPAvalue
| (SA1)
Button + Button -
Maximal 3 minimal 0
Kirim serial SA1value
| (SA2)
Button + Button -
Maximal 3 minimal 0
Kirim serial SA2value
| (SA3)
Button + Button -
Maximal 3 minimal 0
Kirim serial SA3value
|
AD B YES atau NO
Button AD B à show AD B = YES
Button No AD B à show AD B = NO | (SPB)
Button + Button -
Nilai awal 0, +15 +30, +40
Kirim serial SPAvalue
| (SB1)
Button + Button -
Maximal 3 minimal 0
Kirim serial SB1value
| (SB2)
Button + Button -
Maximal 3 minimal 0
Kirim serial SB2value | (SB3)
Button + Button -
Maximal 3 minimal 0
Kirim serial SB3value
|
Input serial , kembalikan perintah serial
Input serial
| Respon
|
ADAvalue + enter | Nilai AD A = value |
ADBvalue + enter | Nilai AD B = value |
SPAvalue + enter | Nilai SPA = value |
SPBvalue + enter | Nilai SPB= value |
SA1value + enter | Nilai SA1= value |
SA2value + enter | Nilai SA2= value |
SA3value + enter | Nilai SA3= value |
SB1value + enter | Nilai SB1= value |
SB2value + enter | Nilai SB2 = value |
SB3value + enter | Nilai SB3= value |

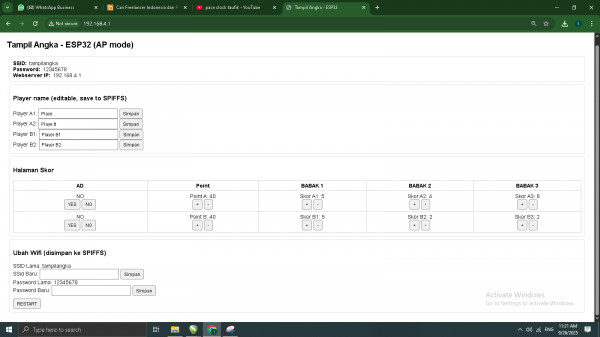

Tampilan web
Player name
Editable Player A1 (dari spiffs) | Button Simpan |
Editable Player A2(dari spiffs) | Button Simpan |
Editable Player B1(dari spiffs) | Button Simpan |
Editable Player B2(dari spiffs) | Button Simpan |
Tampilan halaman skor
AD | Point | BABAK 1 | BABAK 2 | BABAK 3 |
AD A tombol yes tombol no | Point A tombol +/- | Skor A tombol +/- | Skor A tombol +/- | Skor A tombol +/- |
AD B tombol yes tombol no | Point B tombol +/- | Skor B tombol +/- | Skor B tombol +/- | Skor B tombol +/- |
Ubah SSID dan Password wifi | |
SSID LAMA = SSID lama | |
Edit SSID Baru | Button Simpan SSID Baru ke spifss |
Password lamam LAMA = Pasword wifi lama | |
Edit password Baru | Button Simpan password ke spifss |
Button RESTART | |
Please bikin web yang cantik
